SVN Static Code Analysis (Subversion SAST): How Developers Integrate Scans with SVN

Definition:

SVN static code analysis is the practice of running Static Application Security Testing (SAST) against code stored in Apache Subversion (SVN) to find vulnerabilities early in the SDLC – before code runs.

Why it matters to dev & AppSec teams

• Developer‑first workflows: Checkmarx highlights “best fix locations” and provides guided remediation right in the IDE.
• Shift‑left security: surface security defects in source before build or deploy.
• Fewer fire drills: earlier findings cost less to fix and reduce late‑stage churn.
• Auditability & coverage: scanning directly from your central SVN repo ensures nothing slips between branches.

How SVN static code analysis typically works

1. Connect your SAST tool to SVN so scans can pull source from your centralized repository. Checkmarx One SAST supports Source Control connections including SVN.
2. Kick off scans via CLI or CI. With Checkmarx One CLI, you can scan a local working copy, a zipped directory, or a repository URL; results are available in the platform and via CLI/report files.
3. Automate with SVN hooks or your CI server. Use post‑commit hooks to trigger asynchronous scans after each commit, or have CI (e.g., Jenkins/Bamboo) run SAST on commit to trunk/branches.
   SVN supports pre‑commit and post‑commit hook scripts; Checkmarx provides plugins/flows for popular CI tools.
4. Speed it up: Use Fast Scan / recommended exclusions when you need quick feedback in active repos.

Eclipse static code analysis (IDE‑first)

Many teams also run static analysis inside Eclipse to give developers instant feedback as they code. Eclipse supports analysis via plugins: quality tools (e.g., coverage) and security SAST plugins. For AppSec, use the Checkmarx One Eclipse Plugin to run SAST/SCA in the IDE.

Install & run (developer‑speed path):

• Install from Checkmarx One Plugins: Help → Eclipse Marketplace… → search “Checkmarx One” → Install.
• Scan from Eclipse: initiate scans from the IDE; note that Eclipse plugin scans your local workspace code (helpful for pre‑commit checks). Checkmarx.com
• Compatibility note: Check the plugin’s Change Log for requirements (e.g., current releases require Java 11 to run the plugin).
• SVN + Eclipse workflow: scan locally before committing; enforce team‑level gates via SVN post‑commit or CI as described above. (See hooks reference.)

Explore the Checkmarx One Eclipse Plugin overview and setup guides for step‑by‑step instructions and capabilities (run new scans, import existing results, view fix guidance in‑editor).

Quick start with Checkmarx (SVN → SAST)

Prereqs: a Checkmarx project, repository access, and the Checkmarx CLI.

1. Connect to SVN
   In Checkmarx SAST, set your project’s Source Control type to SVN to pull code from your repository.
2. Create/configure the project
   Follow the standard SAST project creation, then select the repository and branch/trunk to scan.
3. Run your first scan from CLI (example)
   From a checked‑out working copy(Python):


       # inside your working copy root
         cx scan create \
          --project-name "my-svn-app" \
          --branch "trunk" \
           --async

The Checkmarx One CLI supports scanning local directories/zips/repo URLs and can output reports (e.g., SARIF) for toolchain integrations.

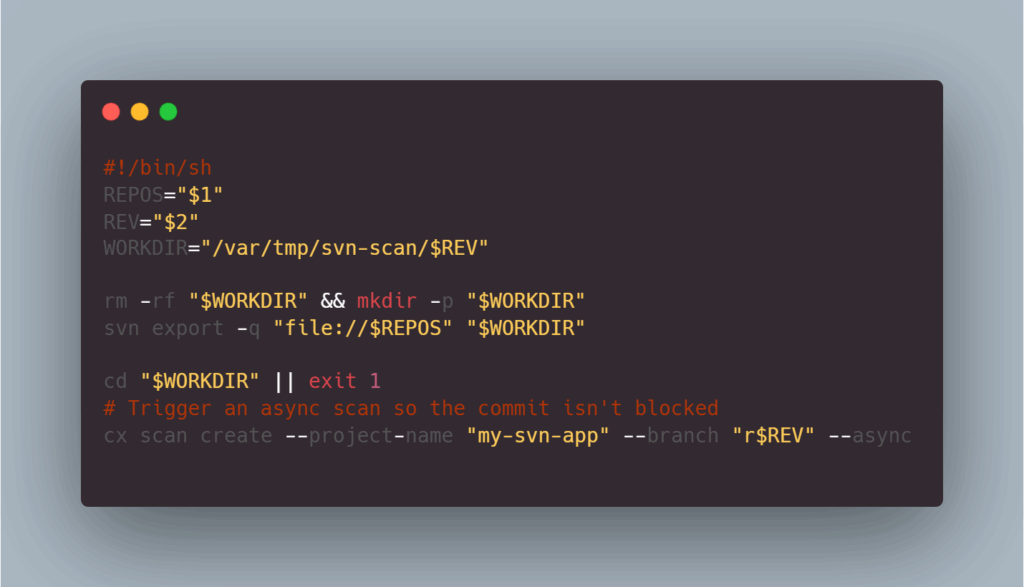

#!/bin/sh
REPOS="$1"
REV="$2"
WORKDIR="/var/tmp/svn-scan/$REV"

rm -rf "$WORKDIR" && mkdir -p "$WORKDIR"
svn export -q "file://$REPOS" "$WORKDIR"

cd "$WORKDIR" || exit 1
# Trigger an async scan so the commit isn't blocked
cx scan create --project-name "my-svn-app" --branch "r$REV" --async

SVN’s server‑side hooks (like post-commit) are designed for exactly this kind of automation. Prefer post‑commit (as shown) for performance; pre‑commit scans can be too slow for large repos.

Best practices for SVN static code analysis

How Checkmarx helps

• Checkmarx SAST provides accurate findings, best‑fix guidance, and rich remediation context.
• Checkmarx One unifies SAST, SCA, DAST and more on a single, developer‑first platform – ideal when you’re modernizing pipelines but still maintain SVN estates.
• CLI & CxFlow make it easy to trigger scans and orchestrate results from hooks, CI jobs, or webhooks.
